Transient Plane Source Method / Thermal Conductivity Analysis / Tps Technology Analyzer Tester

Name: Transient Plane Source Method / Thermal Conductivity Analysis / Tps Technology Analyzer Tester
Brand: BAXIT
SKU: BXT-DRS
Price: 5450 USD
Availability: InStock
Rating: 4.9 (196 reviews)

Informasi Dasar

Tempat asal:	Cina
Nama merek:	BAXIT
Sertifikasi:	CE
Nomor model:	BXT-DRS

Kuantitas min Order:	1 unit
Harga:	5450USD
Waktu pengiriman:	3-5 hari kerja
Syarat-syarat pembayaran:	L/C
Menyediakan kemampuan:	500unit

Harga terbaik Hubungi sekarang

Informasi Detail

Measure method:	Transient Plane Heat Source, Unsteady Status	Measurement physical properties:	Direct access the thermal conductivity and thermal diffusivity
Test object:	Solid, liquid, powder, paste, colloid, granule	Sample size request:	No special requested
Test Range:	0.005--300W/(m*K)	sample temperature range:	Room temperature--130°C
Probe diameter:	15mm/7.5mm	Accuracy:	+3%、-3%
Cahaya Tinggi:	Transient Plane Source Thermal Conductivity Meter , Tps Thermal Conductivity Testing Equipment

Deskripsi Produk

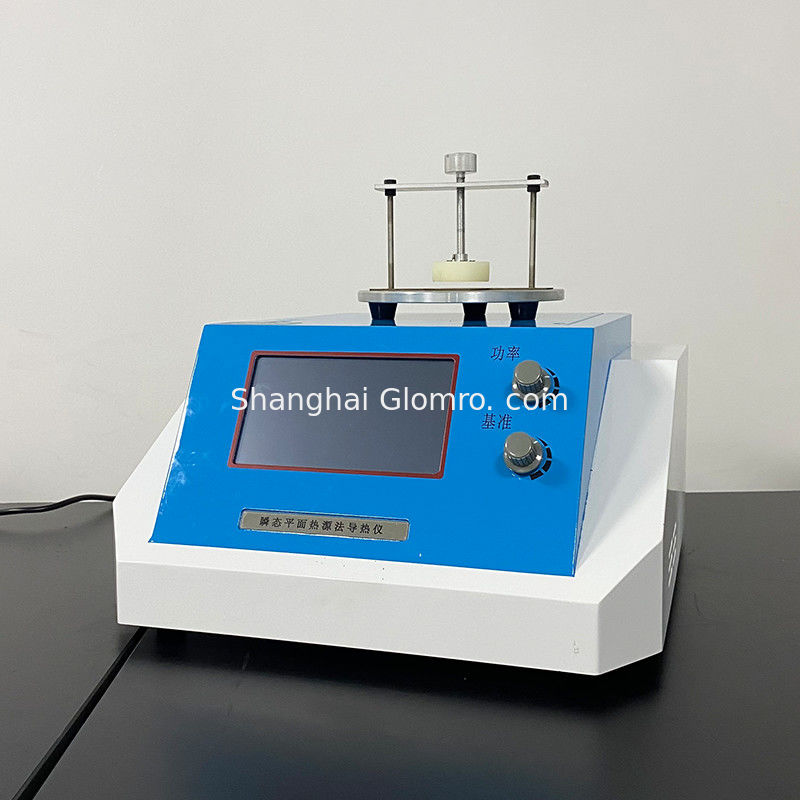

Transient Plane Source Method / Thermal Conductivity Analysis / Tps Technology Analyzer Tester 0

Measure method	Transient Plane Heat Source, Unsteady Status
Measurement physical properties	Direct access the thermal conductivity and thermal diffusivity
Test object	Solid, liquid, powder, paste, colloid, granule
Sample size request	No special requested
Test Range	0.005--300W/(m*K)
sample temperature range	Room temperature--130°C
Probe diameter	15mm/7.5mm
Accuracy	+3%,-3%
Repeatability	3%
Measuring time	5--160 seconds
Power supply	AC 220V
Total power	500w

Transient Plane Source Method / Thermal Conductivity Analysis / Tps Technology Analyzer Tester 2
