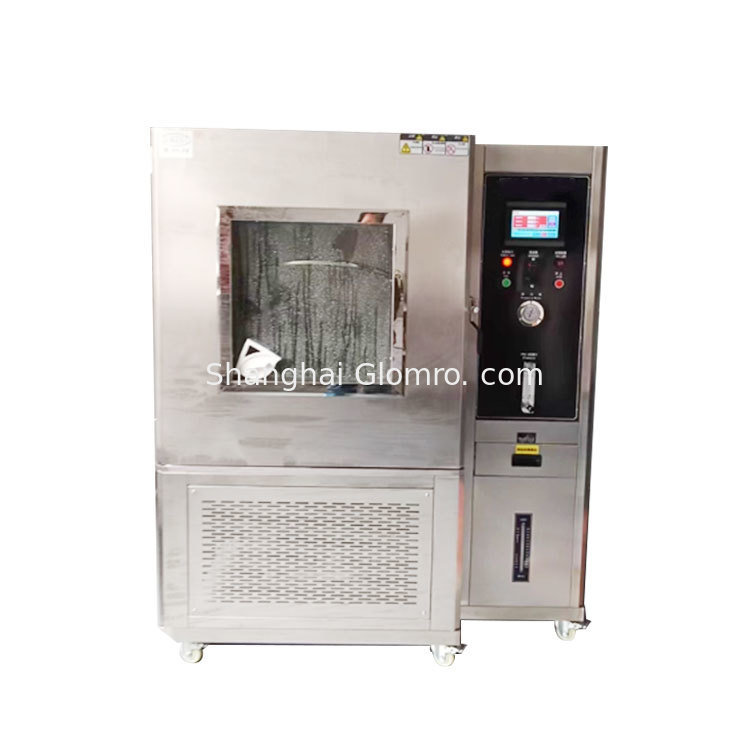

Rain test chamber
The rain chamber is the core equipment for testing the waterproof performance of products. The stability of its performance and the accuracy of the tests directly affect the quality control of the products. As the requirements for product reliability in various industries continue to increase, the application scope of the rain chamber will further expand, and its technology will also continue to develop in the direction of being more intelligent, more efficient, and more in line with the natural environment.
| Enforce Standards |
IPx1.2 |
IPx3.4 |
IPx5.6 |
IPx1.2.3.4 |
IPx3.4.5.6 |
IPx6K |
IPx9K |
Inner Box Dimensions
(WHD) |
600MM |
600MM |
600MM |
600MM |
600MM |
600MM |
600MM |
| Enforce Standards |
IPx1.2 |
IPx3.4 |
IPx5.6 |
IPx1.2.3.4 |
IPx3.4.5.6 |
IPx6K |
IPx9K |
Inner Box Dimensions
(WHD) |
800MM |
800MM |
800MM |
800MM |
800MM |
800MM |
800MM |
| Enforce Standards |
IPx1.2 |
IPx3.4 |
IPx5.6 |
IPx1.2.3.4 |
IPx3.4.5.6 |
IPx6K |
IPx9K |
Inner Box Dimensions
(WHD) |
1000MM |
1000MM |
1000MM |
1000MM |
1000MM |
1000MM |
1000MM |
| Swing pipe water spray hole diameter |
∅0.4mm |
| Water spray hole spacing |
50mm |
| Spray ring radius |
300(mm) |
| Spray pipe diameter |
∅16mm |
| Swing pipe swing angle range |
±60°±90° |
| Swing pipe spray angle |
±60°±90° |
| Swing speed adjustment |
0~30RPM/min(Adjustable) |
| Rain test water pressure |
0.1~6bpa Adjustable |
| Water flow supply volume |
At 4 bar pressure, the flow rate reaches 39.2 L/min |
| Test bench speed |
0~20rpm/min(Adjustable) |
| Test bench area |
∅400mm,Load capacity is 15 kg, and the sample rack is adjustable from 0-300 mm |
| Lead test hole |
There are power lead test holes on the box body, allowing for external power connection. Additionally, the spray lamp lighting time can be adjusted |
| Box structure |
1. Both the inner and outer enclosures of the test chamber are made of SUS304 stainless steel plates. The surface of the outer shell is treated with sandblasting to create a textured finish, while the inner enclosure is a high-quality stainless steel mirror plate.
2. The spray water pipes are also made of stainless steel.
3. The working chamber and all other parts in contact with water are made of stainless steel or copper materials. |
| Control system |
1. Speed control device: Both the swing pipe and the rotating disc for speed control use imported frequency converters.
2. Main configuration: Water storage tank, water pump, pressure reducing and diversion device, pressure gauge, flow meter, spray pipe assembly, swing pipe swing amplitude driving mechanism, worktable rotation mechanism, electrical control system, visible tempered glass door, deceleration mechanism, etc |
| Widely used |
Technical parameters: The climate environment has a significant impact on the aging of products, the fading of pigments, and the corrosion of metals. Therefore, aging tests are receiving increasing attention in industries such as rubber, plastics, chemicals, automobiles, and textiles. There are many factors in the climate environment, including sunlight exposure, temperature, humidity, and rain exposure. The waterproof test chamber is a device for simulating the rain exposure environment. |
Application fields
Details presentation

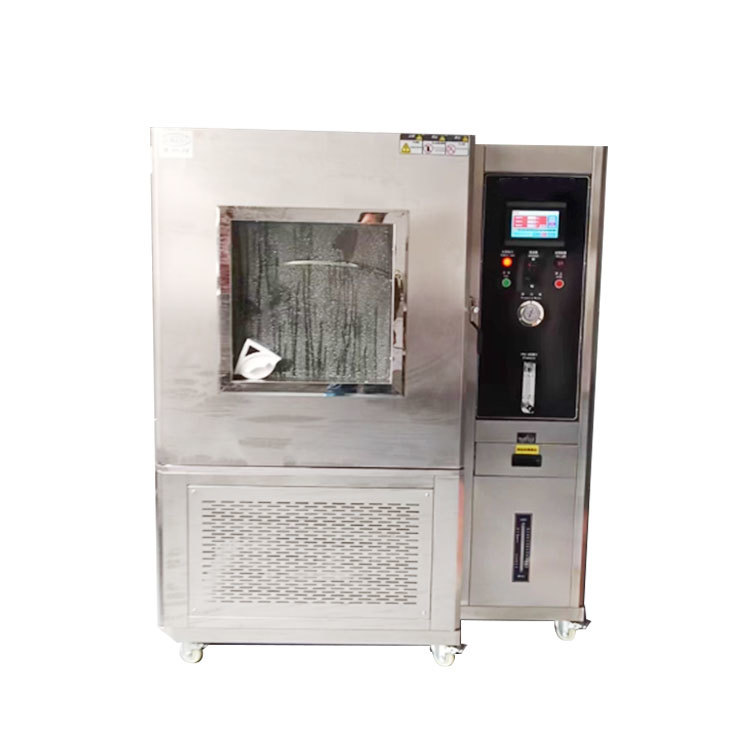

Physical picture
